SDHYPER MONO 690-750W
£100.00
Unmatched Efficiency with 182 Cell DesignExperience superior solar performance with SDHYPER’s advanced 182-cell design. Our panels offer smaller electric currents, reduced Cell-to-Module (CTM) losses, and a significantly lower risk of hot spots, ensuring optimal energy conversion and longevity.Certified Quality and DurabilityOur solar panels adhere to the highest industry standards:ISO9001:2015 & ISO14001 management systems certification guarantees top-notch manufacturing processes.IEC61215 & IEC61730 certifications confirm our commitment to delivering reliable and safe solar products.Exceptional Load Resistance
Description
Built to withstand extreme conditions, SDHYPER panels endure:
Wind loads up to 3800Pa
Snow loads up to 5400Pa
Positive Power Sorting
Benefit from 0-6W positive power sorting, ensuring you get more power than what you pay for, boosting overall system efficiency.
Outstanding Performance in Low Light
Even under weak light conditions, SDHYPER panels maintain stable performance, maximizing energy generation throughout the day.
Robust Warranty
Invest with confidence, backed by our comprehensive warranties:
25-year power warranty ensures sustained performance over the long term.
10-year product warranty covers any manufacturing defects, providing peace of mind.
Linear Performance Warranty
Our linear performance warranty graph illustrates the superior longevity and efficiency of SDHYPER panels compared to industry standards, ensuring 80.7% performance after 25 years.

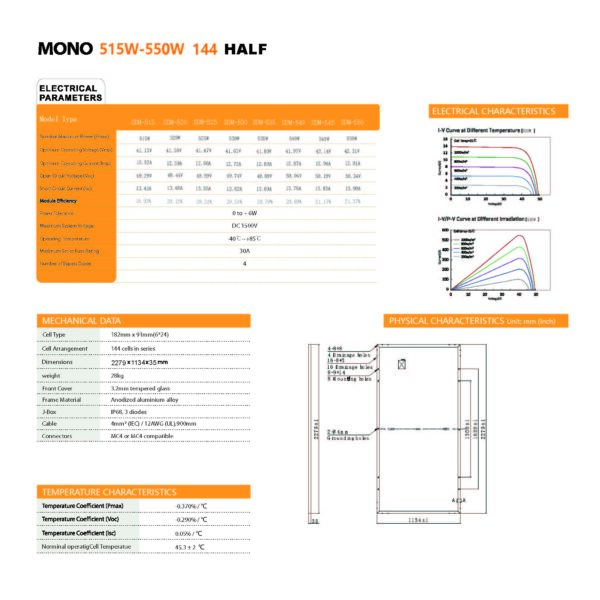

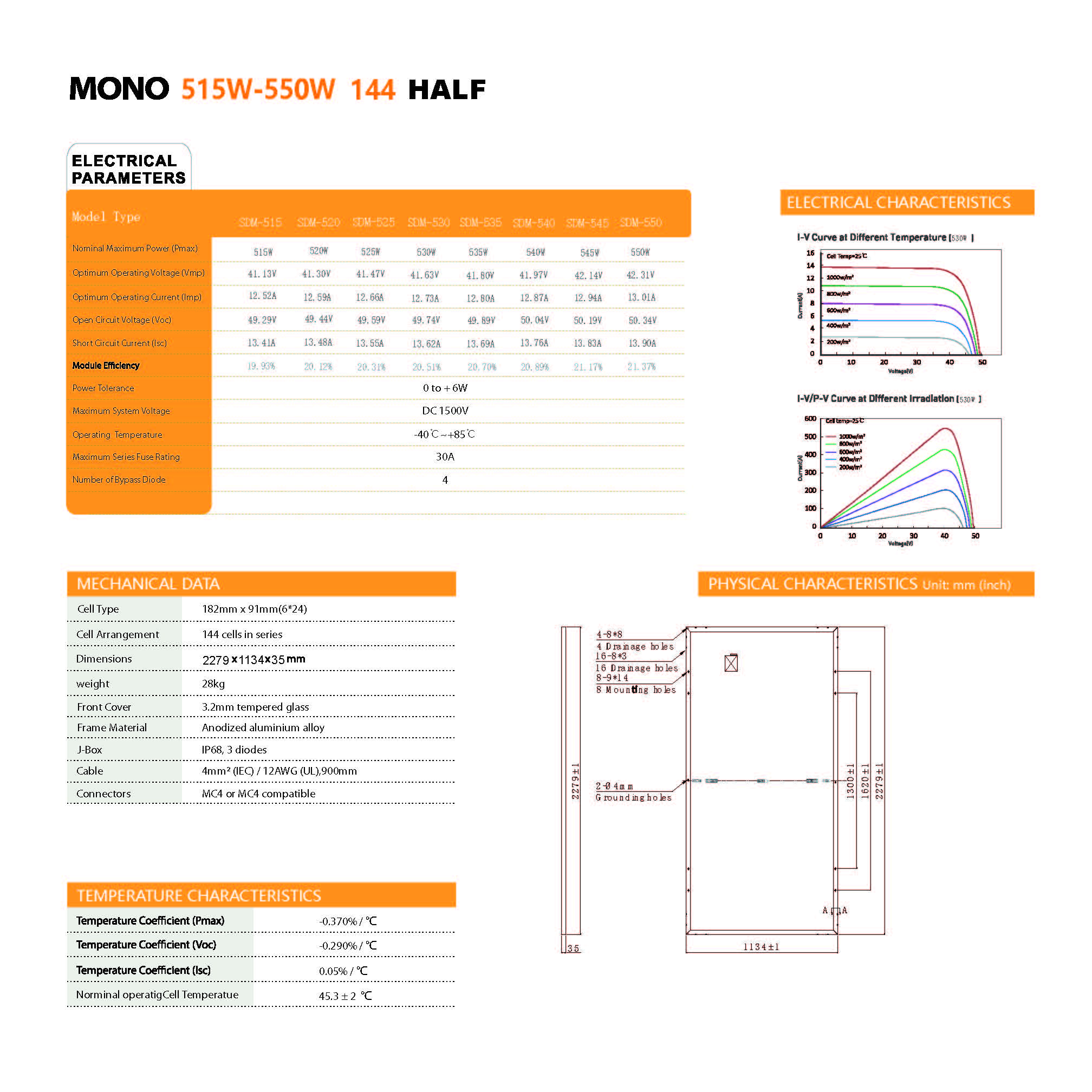

Comprehensive Technical Specifications
Electrical Parameters:
Models Available: SDM-515 to SDM-550
Maximum Power Output: 515W to 550W
Optimum Operating Voltage (Vmp): 42.4V to 44.4V
Optimum Operating Current (Imp): 12.17A to 12.39A
Open Circuit Voltage (Voc): 50.4V to 51.0V
Short Circuit Current (Isc): 13.05A to 13.37A
Module Efficiency: Up to 21.37%
Power Tolerance: 0 to +6W
Maximum System Voltage: DC1500V
Operating Temperature: -40°C to +85°C
Maximum Series Fuse Rating: 30A
Bypass Diodes: 4
Mechanical Data:
Cell Type: 182mm x 91mm
Cell Arrangement: 144 cells in series
Dimensions: 2279 x 1134 x 35 mm
Weight: 28kg
Front Cover: 3.2mm tempered glass
Frame Material: Anodized aluminum alloy
J-Box: IP68, 3 diodes
Cable: 4mm² (IEC) / 12AWG (UL), 900mm length
Connectors: MC4 or MC4 compatible
Temperature Characteristics:
Temperature Coefficient (Pmax): -0.370%/°C
Temperature Coefficient (Voc): -0.295%/°C
Temperature Coefficient (Isc): 0.05%/°C
Nominal Operating Cell Temperature: 45 ± 2°C
Graphical Performance Insights:
Detailed I-V and P-V curves illustrate performance across different temperatures and irradiance levels, ensuring you understand the high efficiency and reliability of our panels in various conditions.
Dimensions and Installation Guide:
A precise schematic diagram provides all necessary measurements for seamless installation and integration into your solar energy system.
