High-Efficiency SD-690 to SD-750W Solar Panels – The Future of Solar Energy
£100.00

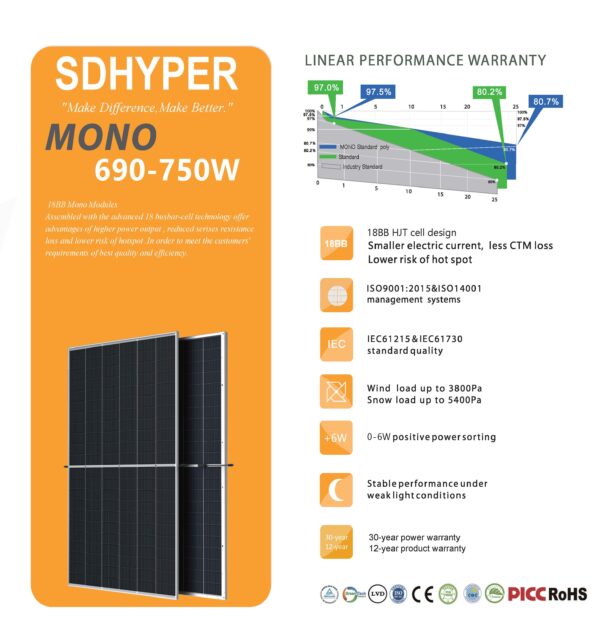

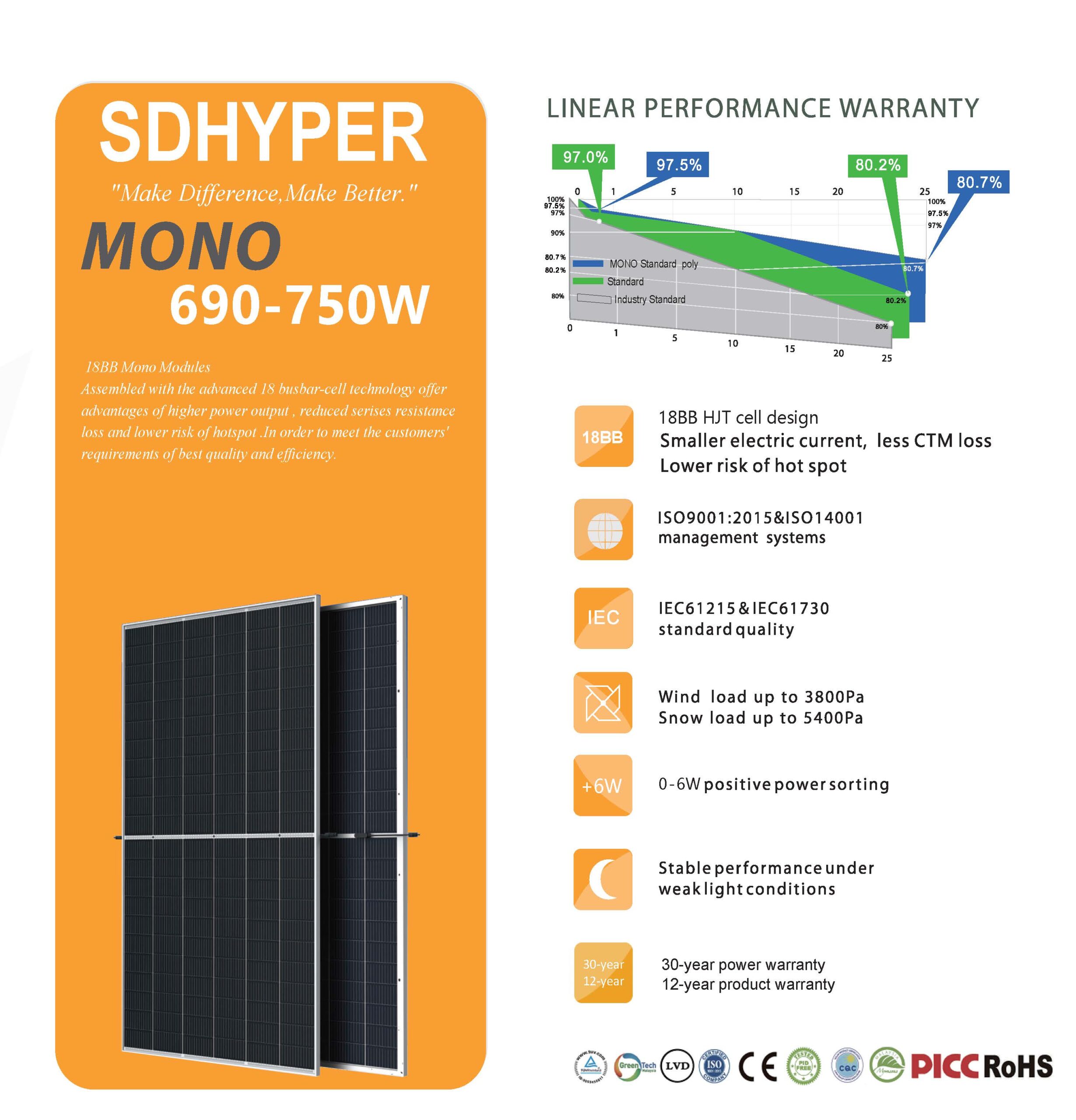

Certified Quality and DurabilityThe SD-690 to SD-750W solar panels are designed to meet the highest standards of quality and durability. These panels are certified under globally recognized standards, ensuring they deliver reliable and efficient performance over their lifespan.Key Certifications:ISO9001:2015: This certification ensures that the manufacturing processes adhere to strict quality management standards, providing consistency in product quality.ISO14001: This certification highlights the company’s commitment to environmental management systems, ensuring sustainable practices in production.IEC61215 & IEC61730: These certifications confirm the panels meet rigorous international standards for performance and safety in photovoltaic modules.Brief Description:SDHYPER’s SD-690 to SD-750W solar panels offer top-tier performance with…
Description
Superior Electrical Performance

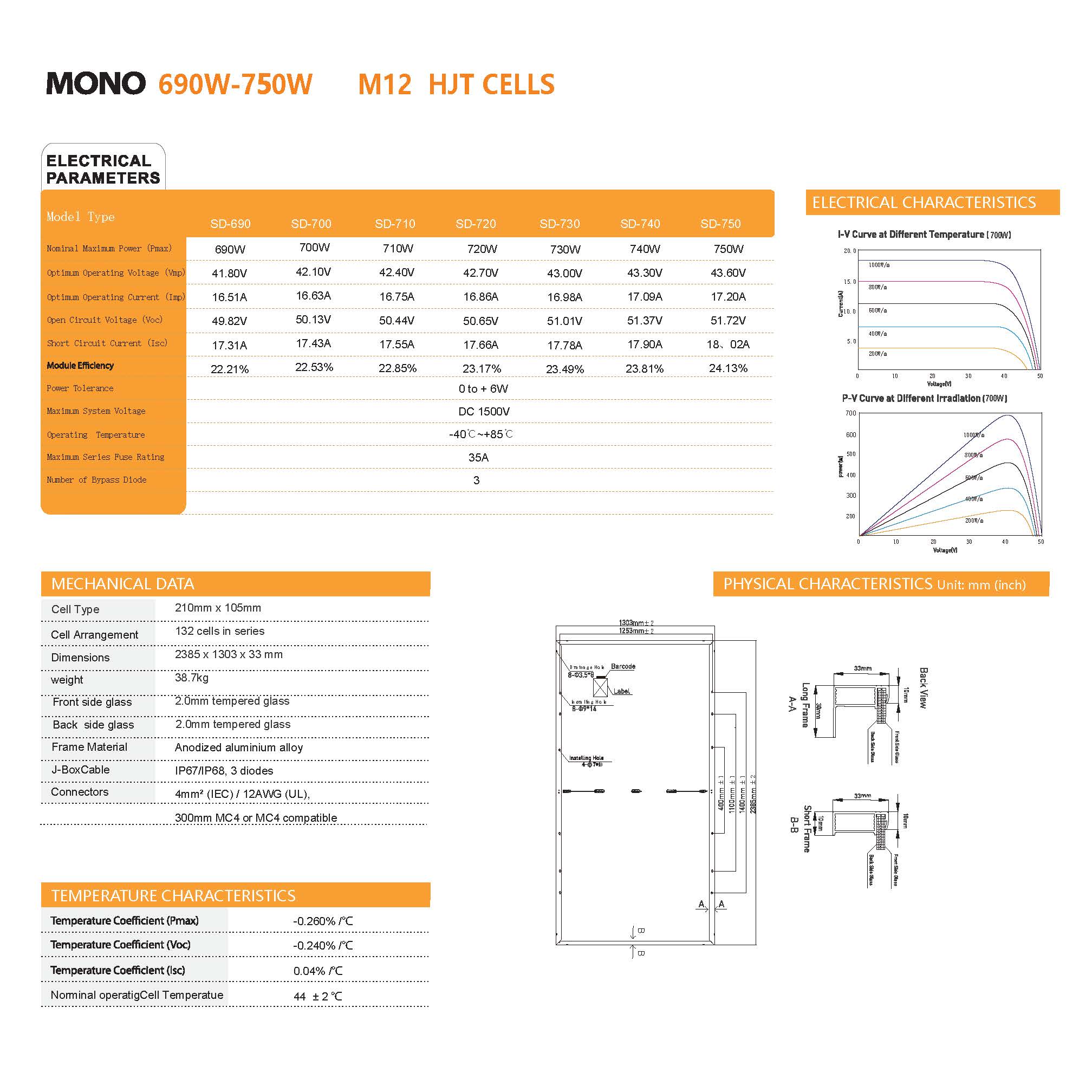

Model Types and Key Electrical Parameters:
- Models Available: SD-690, SD-700, SD-710, SD-720, SD-730, SD-740, SD-750
- Nominal Maximum Power (Pmax): Ranges from 690W to 750W
- Optimum Operating Voltage (Vmp): 41.80V to 43.60V
- Optimum Operating Current (Imp): 16.51A to 17.20A
- Open Circuit Voltage (Voc): 49.82V to 51.72V
- Short Circuit Current (Isc): 17.31A to 18.02A
- Module Efficiency: 22.21% to 24.13%
- Power Tolerance: 0 to +6W
- Maximum System Voltage: DC 1500V
- Operating Temperature: -40°C to +85°C
- Maximum Series Fuse Rating: 35A
- Number of Bypass Diodes: 3
Outstanding Electrical Characteristics:
- Detailed I-V curves at different temperatures, showing the panel’s performance under various conditions.
- P-V curves at different irradiation levels, indicating efficiency and power output under varying sunlight conditions.
Robust Mechanical and Physical Specifications:
Mechanical Data:
- Cell Type: 210mm x 105mm
- Cell Arrangement: 132 cells in series
- Dimensions: 2385 x 1303 x 33 mm
- Weight: 38.7 kg
- Front Side Glass: 2.0mm tempered glass
- Back Side Glass: 2.0mm tempered glass
- Frame Material: Anodized aluminum alloy
- J-Box Cable: IP67/IP68, 3 diodes
- Connectors: 4mm² (IEC) / 12AWG (UL), 300mm MC4 or MC4 compatible
Physical Characteristics:
- Detailed schematic diagrams with dimensions, including back and side views, to aid in installation and system integration.
Excellent Temperature Characteristics:
- Temperature Coefficient (Pmax): -0.260%/°C
- Temperature Coefficient (Voc): -0.240%/°C
- Temperature Coefficient (Isc): 0.04%/°C
- Nominal Operating Cell Temperature: 44 ± 2°C
